Transmission to Engine, Vehicle with 2.0L Engine
WARNING: This page is about a different variant/trim than selected.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

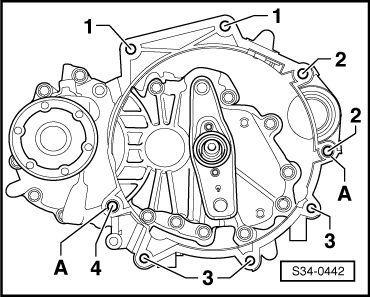

| Item |
Bolt |
Quantity |
Nm |
| 1 |
M 12 x 50 |
2 |
80 |
| 2 |
M 12 x 135
- Also starter to transmission
|
2 |
80 |
| 3 |
M10 x 50 |
3 |
40 |
| 4 |
M 12 x 60 |
1 |
80 |
-A- alignment sleeves for centering
