Overview - Clutch Housing

WARNING: This page is about a different variant/trim than selected.

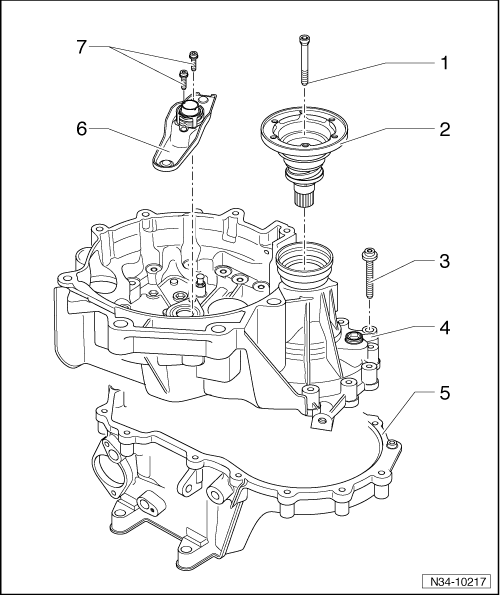

Fig 1: Exploded View Of Clutch Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 25 Nm
Flange Shaft with Pressure Spring
- Removing and Installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Assembling. Refer to DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING .
Bolt
- 5 Nm +90°
- Replace after removing
Clutch Housing
- Servicing. Refer to TRANSMISSION HOUSING AND CLUTCH HOUSING .
Transmission Housing
- Servicing. Refer to TRANSMISSION HOUSING AND CLUTCH HOUSING .
Clutch Release Lever
- With guide sleeve and release bearing
- Removing and Installing. Refer to CLUTCH RELEASE MECHANISM, SERVICING .
Bolt
- Information and tightening specification: -item 2- OVERVIEW - CLUTCH RELEASE MECHANISM .
