Overview - SUBFRAME Mount, Transmission Support Located On Top Of The Transmission

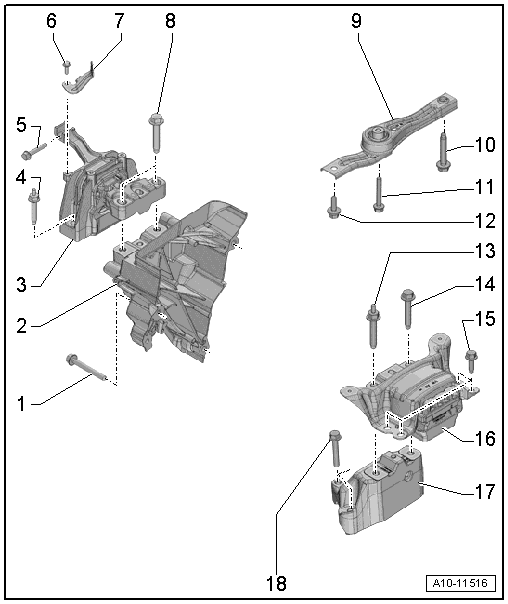

Fig 1: Exploded View Of Subframe Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
2. Engine Support
   • For removing and installing. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
3. Engine Mount
   • With support arm
   • For removing and installing. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
4. Bolt
   • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
5. Bolt
   • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
6. Bolt
   • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
7. Bracket
   • For the coolant check valve
8. Bolt
   • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
9. Pendulum Support
   • For removing and installing. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
10. Bolt
    • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
11. Bolt
    • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
12. Bolts
    • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
13. Bolt
    • 60 Nm +90°
    • Replace after removing
14. Bolt
    • 60 Nm +90°
    • Replace after removing
15. Bolt
    • For the tightening specification. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
16. Transmission Mount
    • With support arm
    • For removing and installing. Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , or SUBFRAME MOUNT (CBPA, CKJA) , or SUBFRAME MOUNT (CNLA, CRJA) , or SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .
17. Transmission Support
18. Bolt
    • 40 Nm +90°
    • Replace after removing
    • Quantity: 3
