Overview - Pedal Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
Lubricate all bearing areas and contact surfaces.

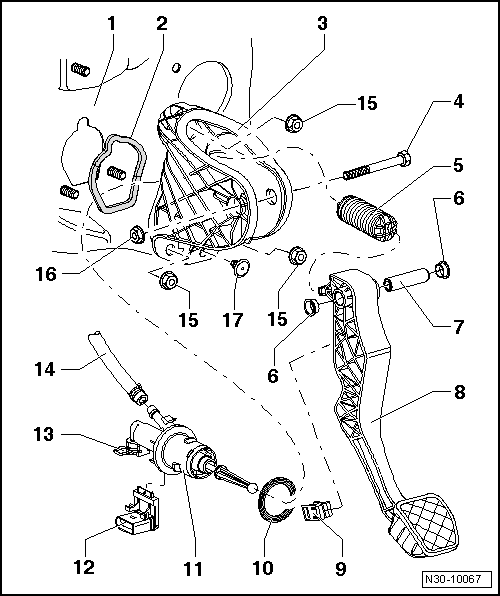

Grease allocation.
- Bulkhead
- With a mount for the bracket
- Seal
- Replace after removing
- Between the bracket and bulkhead
- Self-adhesive
- Bracket
- Removing and Installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .
- For the clutch pedal mount
- Some equipment versions have a damper. Refer to Clutch Bracket With Sound Absorber .
- Bolt
- Over-Center Spring
- Removing and Installing. Refer to OVER-CENTER SPRING, REMOVING AND INSTALLING .
- Bearing Bushing
- Mounting Pin
- Clutch Pedal
- Removing and Installing. Refer to CLUTCH PEDAL, REMOVING AND INSTALLING .
- Base Plate
- To remove and install, disconnect the clutch master cylinder from the clutch pedal. Refer to CLUTCH PEDAL, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- Between the clutch master cylinder and the bracket
- Clutch Master Cylinder
- Removing and installing after removing the bracket. Refer to CLUTCH MASTER CYLINDER, REMOVING AND INSTALLING
- Clutch Position Sensor -G476-
- Removing and Installing. Refer to Clutch Position Sensor -G476-, REMOVING AND INSTALLING .
- can be checked in "Guided Fault Finding " using the Vehicle Diagnostic Tester
- The Clutch Position Sensor -G476- is called the Clutch Pedal Switch - F36- in "Guided Fault Finding ".
- Clamp
- The clamp must be removed in order to remove/install the hose/line assembly
- Supply Hose
- Made of plastic. Refer to Brake Booster Supply Hose .
- Nut
- 25 Nm
- Replace after removing
- Self-locking
- Quantity: 3
- For the bracket to the bulkhead
- Nut
- 25 Nm
- Replace after removing
- Stop
- For the clutch pedal
