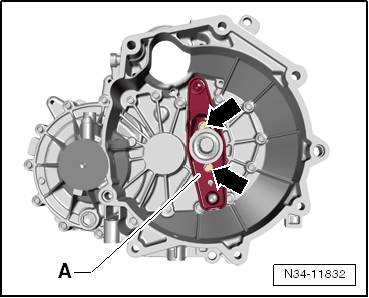

Clutch Release Lever -A- With Release Bearing & Guide Sleeve
WARNING: This page is about a different variant/trim than selected.
-- Remove the bolts -arrows-.
-- Remove clutch release lever with release bearing and guide slide from input shaft and ball joint pin.
Install in reverse order of removal.
- The spring -item ) OVERVIEW - CLUTCH RELEASE MECHANISM - Spring must be engaged into the clutch release lever.
