Clutch Mechanism, Bleeding

WARNING: This page is about a different variant/trim than selected.

Special Tools And Workshop Equipment Required

NOTE:

It is not necessary to pre-fill the system.

Brake fluid: Allocation refer to the parts information.

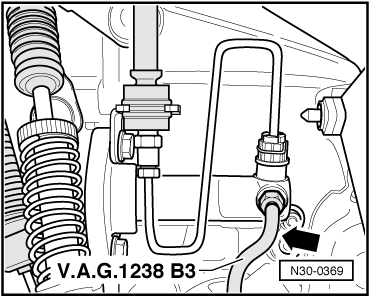

-- Remove the air filter housing if the bleed valve -arrow- is not accessible. Refer to AIR FILTER (CNLA, CRJA) , AIR FILTER (CZCA, CZDA, CZTA) , AIR FILTER (CBPA, CKJA) and AIR FILTER (CPLA, CPPA, CPKA, CPRA) .

GWWN30-0369Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the Brake Charger/Bleeder Unit :VAS5234  or :VAG1869  .

If necessary use the Bleeder Hose (670 mm) : VAG1238/B3  .

-- Connect the bleed hose to the brake bleeder unit collector bottle.

-- Attach the bleed hose to the bleed valve -arrow-.

-- Apply 2 bar (29 psi) pressure to the system.

-- Open the bleed valve.

-- Let approximately 100 cm3 of brake fluid flow out.

-- Close the bleed valve.

-- Operate the pedal rapidly from stop to stop, 10 to 15 times.

-- Open the bleed valve again.

-- Let another 50 cm3 of brake fluid flow out.

-- Close the bleed valve.

-- Press the clutch pedal a few times after bleeding the system.

-- Install the complete air filter housing if it was removed earlier. Refer to AIR FILTER (CNLA, CRJA) , AIR FILTER (CZCA, CZDA, CZTA) , AIR FILTER (CBPA, CKJA) and AIR FILTER (CPLA, CPPA, CPKA, CPRA) .
