Oil Pump, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Vehicles With Two-Piece Oil Pan

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .

Vehicles With One-Piece Oil Pan

-- Remove the oil pan. Refer to OIL PAN, REMOVING AND INSTALLING .

Continuation For All Vehicles

CAUTION:

Do not kink, turn or damage the toothed belt with sharp edges!

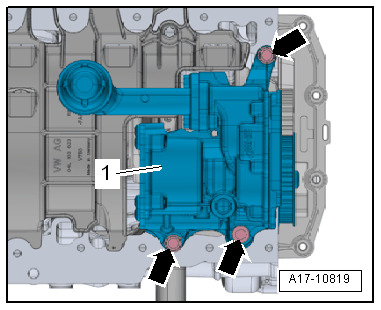

-- Remove the bolts -arrows- and oil pump -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Do not loosen the bolt on the pump wheel.
