-- Insert the splash wall.

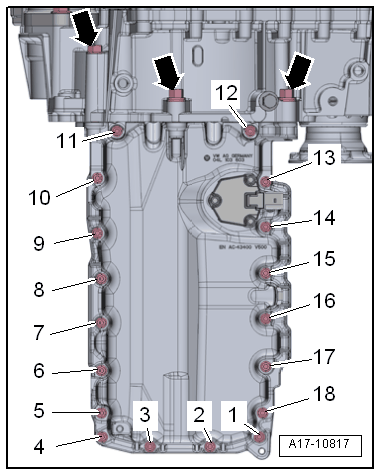

-- Position the oil pan and tighten the bolts. Refer to Figure.

The oil pan must be flush with the intermediate plate on the transmission flange.

NOTE:

When installing the oil pan on a removed engine, make sure that the oil pan is positioned flush with the cylinder block on the flywheel side.

Allow the sealant to dry for approximately 30 minutes after installing the oil pan. Only afterward may the engine oil be replenished.

-- Fill the engine oil and check the oil level.
