-- Insert the splash wall.

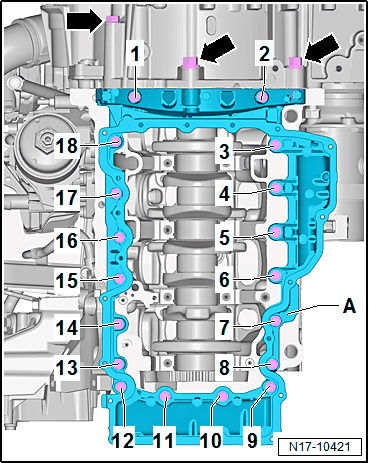

-- Position the oil pan upper section and tighten the bolts. Refer to Figure.

The oil pan upper section must be flush with the intermediate plate on the transmission flange.

NOTE:

The three bolts -10 to 12- are specially coated with sealing paint, pay attention to the allocation when installing.

Allocation of the bolts.

Replace the bolts.

When installing the oil pan upper section to a removed engine, make sure that the oil pan upper section is positioned flush with the cylinder block on the flywheel side.

Allow the sealant to dry for approximately 30 minutes after installing the oil pan upper section. Only afterward may the engine oil be replenished.

-- Fill the engine oil and check the oil level.
