Special Tools

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

T-Handle Hook :3438
Engine Bung Set :VAS6122
Support Bridge :T10323
Subframe Bushing Assembly Tool Kit -Assembly Tool 5 :T10356/5 from the Subframe Bushing Assembly Tool Kit :T10356
Puller - Clutch :T10373
Clutch Press Piece :T10376
Protective Cap :0AM 325 120 A quantity 1 and Protective Cap :02M 409 120 quantity 1, as an alternative to the Engine Bung Set :VAS6122

Support Bridge :T10323

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Subframe Bushing Assembly Tool Kit -Assembly Tool 5 :T10356/5 from the Subframe Bushing Assembly Tool Kit :T10356

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

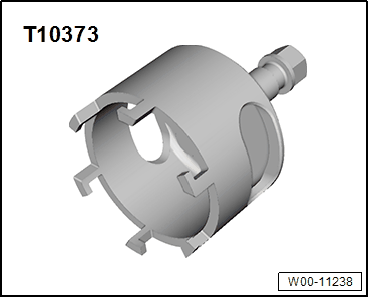

Puller - Clutch :T10373

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Puller - Shaft Seal :T10420

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

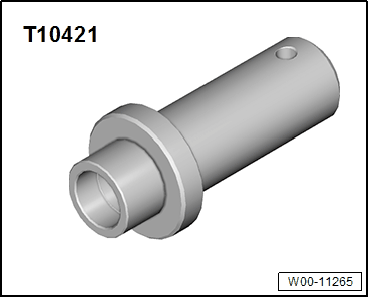

Seal Installer - Shaft Seal :T10421

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

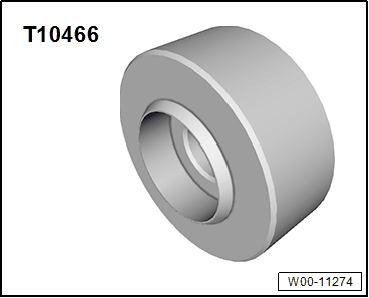

Gauge - Clutch Bearings :T10466

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Crankshaft/Power Steering Seal :T20143/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Ruler (2 pc.):T40100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - 60mm :VW415A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Digital Depth Gauge - 300mm :VAS6594
