Component Location Overview - Clutch Mechanism

WARNING: This page is about a different variant/trim than selected.
NOTE:

Get the anti-theft code for the radio before disconnecting the battery.

Disconnect the battery ground cable. Refer to BATTERY .

Lubricate all bearing areas and contact surfaces.

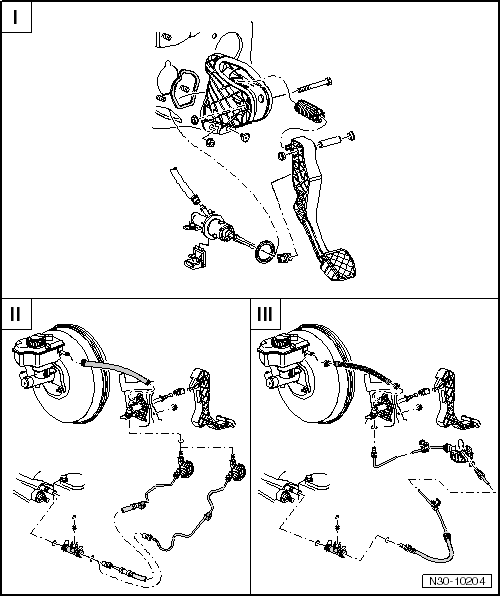

Grease allocation.

GWWN30-10204Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. I -

    Refer to OVERVIEW - PEDAL ASSEMBLY

  2. II -

    Refer to OVERVIEW - CLUTCH HYDRAULICS

  3. III -

    Refer to OVERVIEW - CLUTCH HYDRAULICS, RHD
