Component Location Overview - Electrical Components, Clutch Mechanism
WARNING: This page is about a different variant/trim than selected.

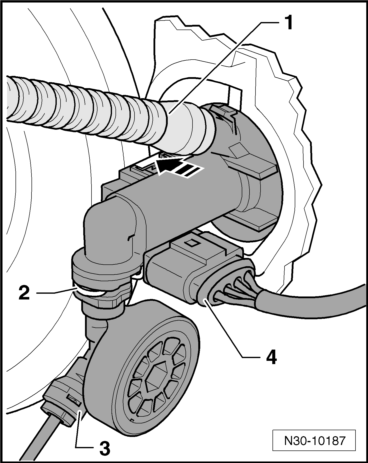

Clutch Position Sensor -G476- -arrow-
Installed location: In the engine compartment under the supply hose -1- on the clutch master cylinder -2- behind the wire -3-.
The connector -4- is on the Clutch Position Sensor -G476-.
Clutch Position Sensor -G476-, Removing and Installing. Refer to Clutch Position Sensor -G476-, REMOVING AND INSTALLING .
