MECHATRONIC Safety Precautions
WARNING: This page is about a different variant/trim than selected.

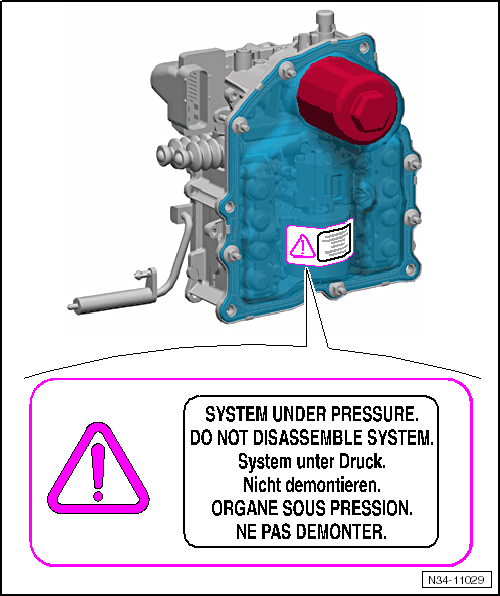

Identifying Mechatronic Safety Precautions
WARNING:
The system is under pressure.
- The DSG Transmission Mechatronic -J743- has a pressure reservoir that can hold up to 60 bar (870 psi) pressure.
- The cover on the DSG Transmission Mechatronic -J743- and the pressure reservoir may not be opened.
NOTE:
The pressure reservoir holds a maximum pressure of 60 bar (870 psi). The pump software adjusts the pressure. The pump shuts off when this pressure is reached. The pump turns back on when the pressure falls below 42 bar (609 psi) caused by shifting. A pressure of up to approximately 75 bar (1087 psi) could be produced should the software be faulty. The pressure relief valve opens automatically when this pressure is reached.
