Transmission Assembly Overview

WARNING: This page is about a different variant/trim than selected.

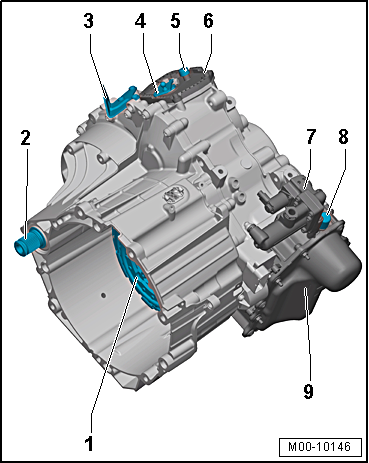

Fig 1: Transmission External Components Location
GWWM00-10146Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Dual clutch
  2. Right Stub Shaft
  3. Cable Mounting Bracket
  4. Gearshift Lever
  5. Transmission ventilation cap
  6. Parking lock cover
  7. Valve block
  8. DSG Transmission Mechatronic -J743- Bleed Unit
  9. DSG Transmission Mechatronic -J743-
