Overview - Powertrain, Front Wheel Drive
WARNING: This page is about a different variant/trim than selected.

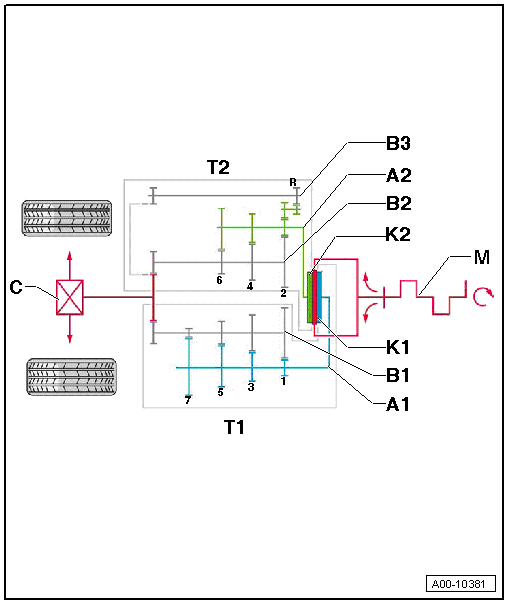

The 7-speed DSG transmission 0CG has 5 shafts. Two input shafts and three output shafts.
- A1 - Input Shaft 1
- A2 - Input Shaft 2
- B1 - Output Shaft 1
- B2 - Output Shaft 2
- B3 - Output Shaft 3
- C - Front Final Drive
- K1 - Clutch 1
- K2 - Clutch 2
- M - Engine
- T1 - Sub-Transmission 1
- With 1st, 3rd, 5th and 7th gears
- T2 - Sub-Transmission 2
- With 2nd, 4th, 6th and reverse gears
