Fuel Temperature Sensor -G81-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

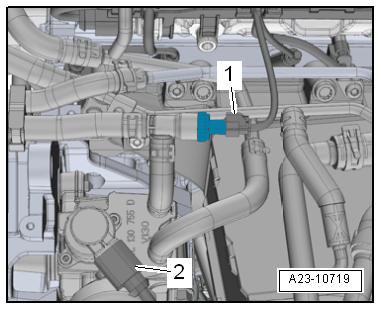

-- Release and disconnect the connector -1-.
WARNING:
The fuel line is under pressure.
Fuel poses a risk of injury to the eyes and skin.
Wear protective eyewear and protective clothing to avoid injury and contact with skin. Place a cleaning cloth around the connection point before loosening hose connections. Carefully open the connection point to release the pressure.
-- Remove the Fuel Temperature Sensor -G81-.
-- Collect escaping fuel using a cloth.
