Fuel Pressure Sensor -G247-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Before removing, clean the threaded area around the Fuel Pressure Sensor -G247- using commercially available cold solvent cleaner, for example.
- Dirt must not get into the high pressure reservoir opening.
- Clean carefully, cleaner must not enter the connector.
-- Dry the Fuel Pressure Sensor -G247-.

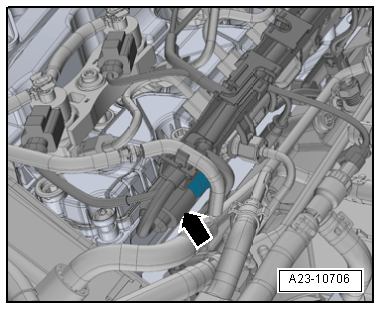

-- Disconnect the connector -arrow-.
-- Remove the Fuel Pressure Sensor -G247- using the :T40218 .
-- Suction any dirt out of the hole in the high pressure reservoir, the threads and the sealing surface. Do not use mechanical tools.
-- Seal the open openings on the high pressure reservoir using blind plugs.
