Exhaust Pressure Sensor 1 -G450-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

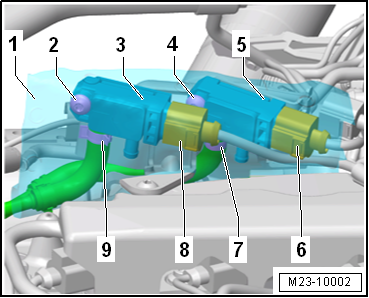

-- Open the heat shield boot -1-.
-- Disconnect the connector -8-.
-- Remove the bolt -2- and push the Differential Pressure Sensor -G505- -3- slightly to the side.
-- Disconnect the connector -6-.
-- Remove the bolt -4-.
-- Before removing, spray the Exhaust Pressure Sensor 1 -G450- -5- hose with a solvent.
-- Loosen the hose clamp -7-.
CAUTION:
There is a risk of damaging the differential pressure sensor by breaking the connection.
- Remove the hose carefully and evenly from the connection.
