Overview - Charge Air System
WARNING: This page is about a different variant/trim than selected.
- Seal
- Replace after removing.
- Alignment Pin
- Bolt
- 8 Nm
- Seal
- Replace after removing.
- Bolt
- Tightening specification and sequence. Refer to Fig 4.
- Bracket
- For intake manifold
- Bolt
- Tightening specification and sequence. Refer to Fig 4.
- Bolt
- Tightening specification and sequence. Refer to Fig 3.
- Replace after removing.
- Alignment Pin
- Bolt
- 8 Nm
- Intake Manifold with Charge Air Cooler
- The intake manifold with charge air cooler are one unit.
- Removing and installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to Fig 3.
- Replace after removing.
- Charge Air Temperature Sensor after Charge Air Cooler -G811-
- 22 Nm
- Removing and installing. Refer to Charge Air Temperature Sensor in Front Of Charge Air Cooler -G810- /Charge Air Temperature Sensor After Charge Air Cooler -G811-, REMOVING AND INSTALLING .
- Seal
- Replace after removing.
- Connection
- For the Throttle Valve Control Module -J338-
- Intake Air Temperature Sensor -G42-
- 22 Nm
- Removing and installing. Refer to Charge Air Temperature Sensor in Front Of Charge Air Cooler -G810- /Charge Air Temperature Sensor After Charge Air Cooler -G811-, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Coolant Pipe
- Bolt
- 10 Nm
- Coolant Pipe
- O-rings
- Replace after removing.
- Throttle Valve Control Module -J338-
- With Throttle Position Sensor -G69-
- Removing and installing. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .
- O-ring
- Replace after removing.
- Air Duct Pipe
- Bolt
- 8 Nm
- Bracket
- For the Throttle Valve Control Module -J338-
- Bolt
- Tightening specification and sequence. Refer to Fig 4.
- Bolt
- Tightening specification and sequence. Refer to Fig 4.

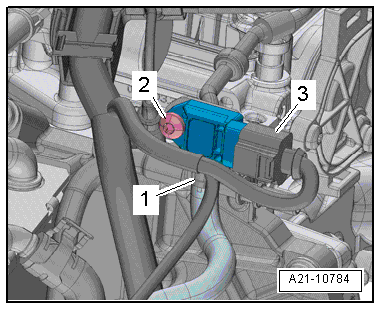

| Component | Tightening Specification |
|---|---|
| Bolt -2- for Charge Air Pressure Sensor -G31- | 9 Nm |
