Oil Pump, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

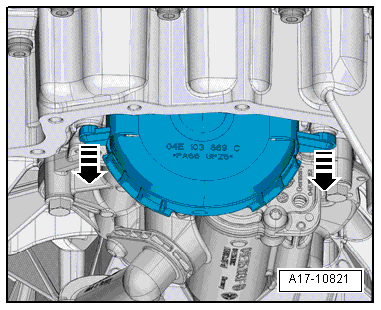

-- Remove the cover from the oil pump drive chain sprocket in direction of -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

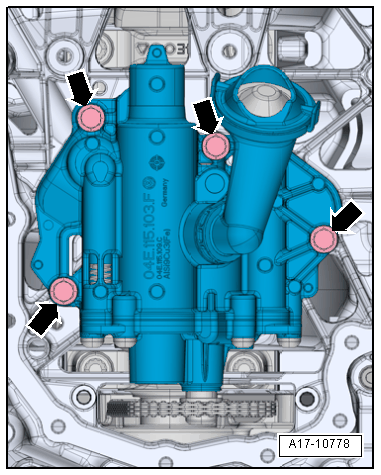

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the oil pump and drive chain sprocket out under the drive chain.
