Oil Pump, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

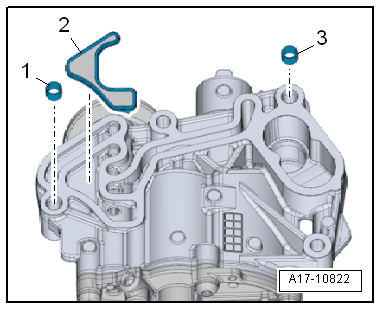

-- Make sure the alignment sleeves -1 and 3- are installed in the oil pump.

-- Insert the seals and strainer -2- in the oil pump.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal and note the following:

-- Turn the oil pump drive chain sprocket and make sure the oil pump moves easily.

NOTE:

Replace the oil pump if it does not move easily.

-- Install the oil pump and drive chain sprocket in the drive chain and tighten.

-- Install the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Fill the engine oil and check the oil level.
