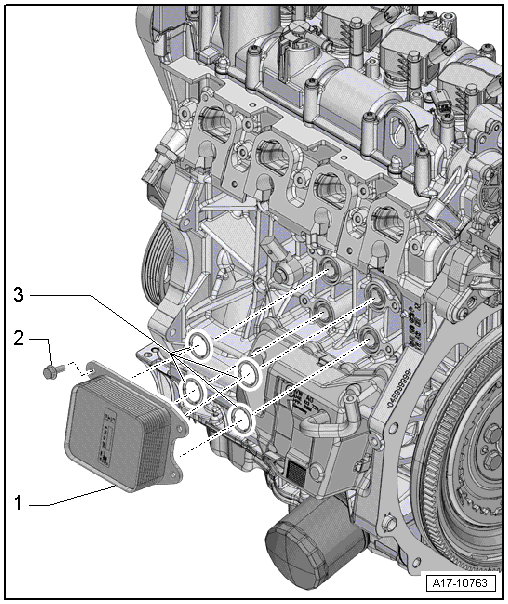

Overview - Engine Oil Cooler
WARNING: This page is about a different variant/trim than selected.
- Engine Oil Cooler
- See note. Refer to OIL PAN/OIL PUMP .
- Removing and installing. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
- Fill with coolant after replacing. Refer to COOLANT, DRAINING AND FILLING - Filling .
- Bolt
- 8 Nm +90°
- Replace after removing.
- Seals
- Replace after removing.
