Engine Oil Cooler, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

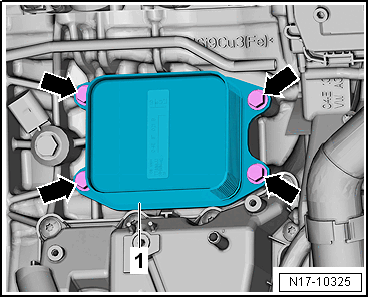

-- Remove the bolts -arrows- and remove the engine oil cooler -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
