Overview - Crankcase Ventilation: Notes

WARNING: This page is about a different variant/trim than selected.

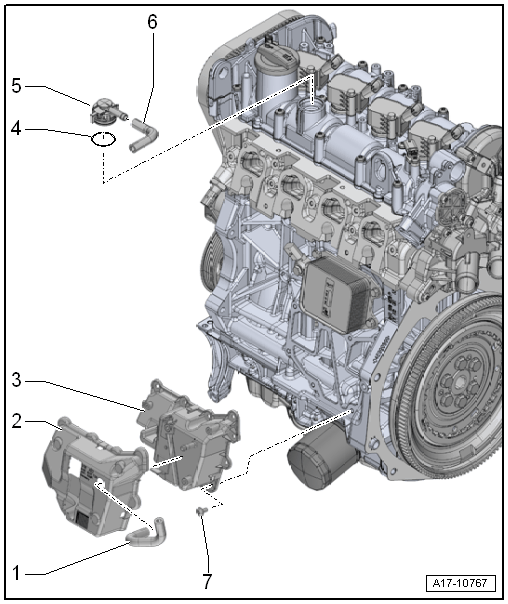

Fig 1: Crankcase Ventilation Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hose
- For the crankcase ventilation
Cover
- For oil separator
Oil Separator
- Replace if damaged
- Removing and installing. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
Seal
- Replace after removing.
Connection
Hose
- For the crankcase ventilation
Bolt

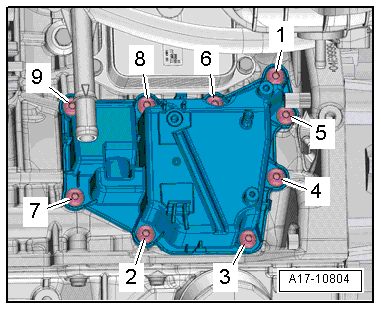

- Tightening specification and sequence. Refer to Figure.
- Replace after removing.
- Self-locking
