Oil Separator, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION .

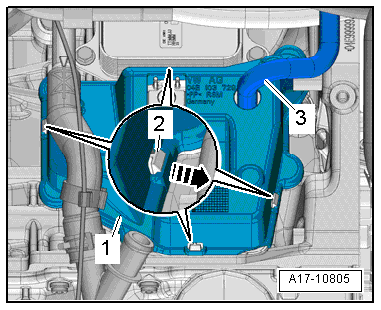

-- Remove the hose -3- for the crankcase ventilation.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the cover -1- for the oil separator at the retainers -2- in direction of -arrow- and remove it.

-- Loosen and remove the bolts in the following sequence: -9 to 1-.

Fig 1: Oil Separator - Tightening Sequence (Loosening Sequence 9 to 1)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully loosen the oil separator from the adhesive.
