Oil Separator, Removing And Installing: Installing

Install in reverse order of removal and note the following:

• Risk of contaminating the lubricating system
• Cover open engine components.

-- Remove any sealant residue on the cylinder block using a flat blade scraper.

-- Clean any oil or grease off the sealing surfaces.

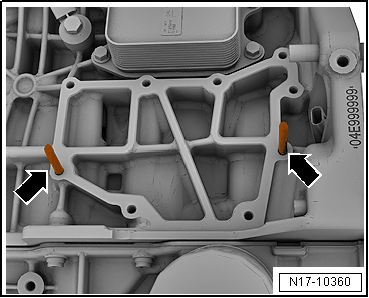

-- Install only a few threads of the two M 6 x 20 mm stud bolts in the holes -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Be sure to check the expiration date of the sealant.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2.0 mm).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

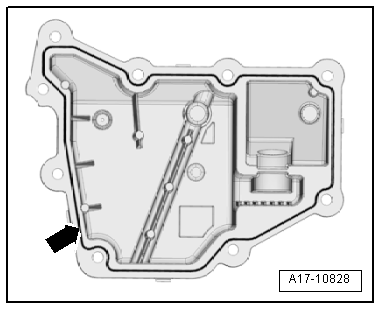

-- Apply the sealant bead -arrow- using the :VAS6966  on the clean sealing surface of the oil separator, as shown.

• Do not apply sealant bead thicker than indicated.
• Sealant bead thickness: 2.0 mm

Install the oil separator within five minutes of applying the sealant.

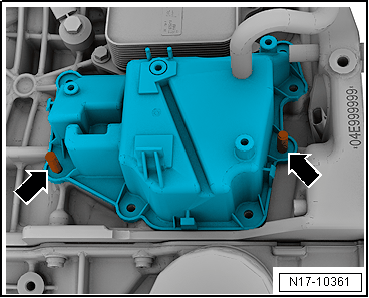

-- Place the oil separator on the stud bolts -arrows- and push onto the crankcase.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the securing bolts.

-- Remove the stud bolts.

-- Install the oil separator and tighten the bolts. Refer to Figure.

Further installation is performed in reverse order of removal, while noting the following:

-- Install the noise insulation. Refer to NOISE INSULATION .
