Fuel Lines, Removing And Installing: Installing:

Install in reverse order of removal. Note the following:

-- Remove the pulling aid from the old lines.

-- Insert the lines as shown in the shield guide and clip in. Refer to INSTALLATION POSITION OF FUEL LINES ON THE SHIELD  below.

-- The fuel lines are clipped in the at the top after guiding in.

-- Pay attention that the plug is seated correctly on the new lines.

-- Seal the lines with suitable plugs from the Engine Bung Set :VAS6122  .

-- Secure the pulling aid on the fuel lines.

-- Use adhesive tape to secure the pulling aid.

-- Pay attention that the pulling aid is only secured in the front area of the lines.

-- At the bottom seal the shield from the slotted guide with adhesive tape so that the lines do not slide out.

-- Place the fuel lines together with the shield on the opening in the longitudinal member.

Installation Position Of Fuel Lines On The Shield:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fuel Supply Line
2. Parking/Auxiliary Heater Fuel Line
3. Guide for the Parking/Auxiliary Heater Fuel Line
4. Lower line guide
5. Bracket for the Lines in the Coupling Rod Area
6. Bleeder Line

Installation position of the fuel lines on the coupling point in engine compartment:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fuel Supply Line
2. Bleeder Line

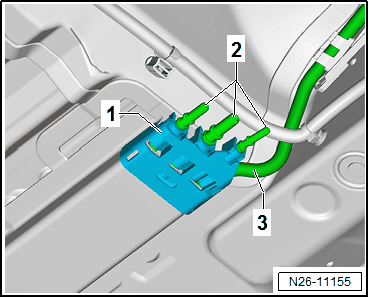

Installation position of the fuel lines on the underbody:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Line Bracket

2 - Fuel Lines for Supply, Return and Parking/Auxiliary Heater

3 - Reducing Agent Line

• Refer to WHEELS AND TIRES .
• Refer to UNDERBODY TRIM PANEL .
