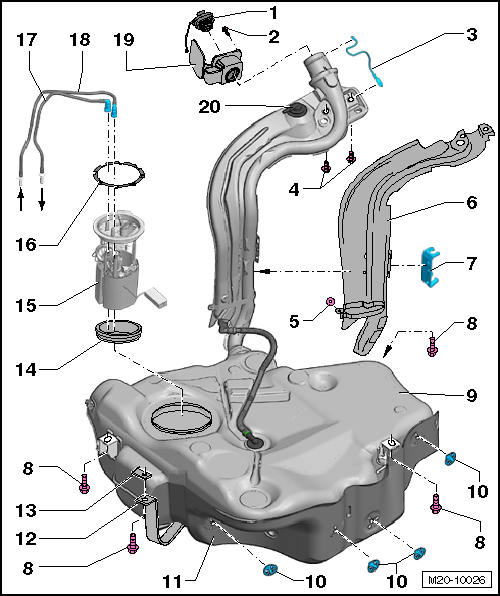

Overview - Fuel Tank
WARNING: This page is about a different variant/trim than selected.
- Cap
- Replace if damaged.
- Bolt
- 1.5 Nm
- Ground Connection
- Make sure it is secure
- Bolt
- 11 Nm
- Rivet
- Shield
- Riveted to lower clamp at factory
- If replacing the fuel tank, position the protective plate on the filler tube and rivet the clamp. The holes in the protective plate must align with the holes on the filler tube.
- Wiring Guide
- For the ABS line
- Clipped to the shield
- Bolt
- 25 Nm
- Replace after removing
- Fuel Tank
- Draining. Refer to FUEL TANK, DRAINING .
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Support while removing with the Engine and Gearbox Jack :VAS6931 .
- Lock Washer
- Heat Shield
- Mounting Strap
- Pay attention to the installed position.
- Suspended Mount
- Seal
- Replace if damaged.
- Install the dry seal into the opening in the fuel tank
- Moisten with fuel only when installing flange
- Fuel Delivery Unit
- Note the fuel delivery unit flange installed position
- Fuel Delivery Unit, Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING
- With Fuel Level Sensor -G-
- Fuel Level Sensor -G-, Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- With Transfer Fuel Pump -G6-
- Checking Transfer Fuel Pump -G6-. Refer to Transfer Fuel Pump -G6-, CHECKING .
- Locking Ring
- 110 Nm
- Make sure it is secure
- Remove and install with the Wrench - Fuel Sending Unit :T10202 .
- Fuel Supply Line
- Black
- Attached to the side of the fuel tank
- Make sure it is secure
- To disconnect, press release button on the connection piece.
- To fuel filter
- Fuel Return Line
- Blue
- Attached to the side of the fuel tank
- Make sure it is secure
- To disconnect, press release button on the connection piece.
- From the fuel filter
- Fuel Filler Door Unit
- With rubber cup
- Removing and installing. Refer to FUEL FILLER DOOR UNIT .
- Ventilation
