Fuel Tank, Draining With Fuel Pump Installed: Removing

WARNING: This page is about a different variant/trim than selected.

-- Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to PARKING/AUXILIARY HEATER AND FUEL SYSTEM CLEAN WORKING CONDITIONS .

-- Turn off the ignition.

-- Remove the supply line -B- and wipe up the draining fuel with a cleaning cloth. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, SEPARATING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Fuel lines are under pressure.

Danger of personal injury to eyes and skin.

Wear protective eyewear and protective clothing in order to avoid injury and contact with the skin. Wrap a cloth around the connection before loosening hose connections. Open the connection carefully and release the pressure.

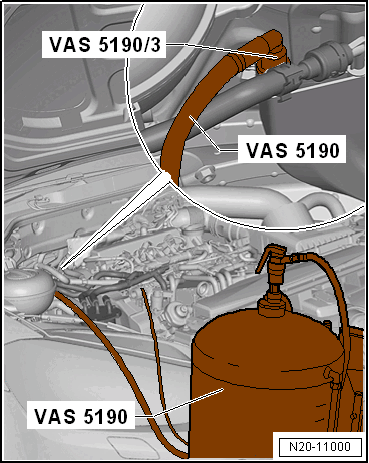

-- Connect the Fuel Extraction Unit :VAS5190 and Fuel Extraction - Adapter 3 :VAS5190 /3 to the fuel supply line.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the Vehicle Diagnostic Tester.

-- Perform the Guided Function Empty fuel tank .

-- Repeat the function if necessary.

NOTE:

The fuel pump is activated.

-- Open the shut-off valve on the Fuel Extraction Unit :VAS5190 until the fuel tank is empty.
