Transmission, Removing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Determine whether a coded radio is installed. If so, obtain the anti-theft code.

-- Disconnect the battery ground cable. Refer to Battery, Starter, Generator, Cruise Control . .

-- Remove the engine cover. Refer to [For engine(s) CZTA] Engine Assembly [For engine(s) CBPA] Engine Assembly [For engine(s) CNLA] Engine Assembly [For engine(s) CVCA] Engine Assembly [For engine(s) CPPA, CPRA, CPKA, CPLA] Engine Assembly .

-- Remove the complete air filter housing. Refer to [For engine(s) CVCA] Air Filter or [For engine(s) CNLA] Air Filter [For engine(s) CZTA] Air Filter [For engine(s) CBPA] Air Filter [For engine(s) CPPA, CPRA, CPKA, CPLA] Air Filter .

-- Remove the battery and the battery tray. Refer to Battery, Starter, Generator, Cruise Control Battery, Starter, Generator, Cruise Control .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the shift cable lock washer -1- from the transmission shift lever -2- and remove the cable from the pin -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cable retainer from the selector cable.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To avoid damage to the selector cable, the cable retainer must be disconnected from the selector lever before removal.

-- Pull the securing mechanism all the way forward in direction of -arrow 1- and then unlock to the left in direction of -arrow 2-.

-- Then push the selector relay lever forward (direction of -arrow 3-).

NOTE:

Remove cable retainer only if selector relay lever is removed. Refer to Installing .

-- Remove the cable bracket from the transmission -arrows-, move it to the side and tie it up.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with a Pipe Between the Clutch Master and Slave Cylinders

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclamp the supply hose to the clutch master cylinder with a Hose Clamps - Up To 25mm :3094 .

NOTE:

A slight deformation of the supply hose remains after the Hose Clamps - Up To 25mm :3094 have been unclamped.

The supply hose is therefore not defective.

After removing the Hose Clamp up to 25 mm :3094 , the supply hose must be formed back into its original shape.

Vehicles with a Hose/Line Assembly Between the Clutch Master and Slave Cylinders

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off the hose line -A- to the clutch slave cylinder with Hose Clamps - Up To 25mm :3094 .

Continuation for All

-- Place a lint-free cloth under the bleeder.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the clamp -arrow- for the hose/line assembly or the pipe out all the way to the stop.

-- Remove the hose/line assembly or pipe from the bleeder/clutch slave cylinder and seal it off.

-- Tie up wire.

CAUTION:

Do not press the clutch pedal anymore.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS6122 .

-- Remove the ground strap -1- from the top starter bolt.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2- for the Back-Up Lamp Switch -F4-.

-- Disconnect the connector and the wire from the starter.

-- Remove the upper engine/transmission connecting bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper bolt from the starter.

-- Remove the plenum chamber cover. Refer to Bulkhead .

-- Remove the bolts -arrows- for the left and right lock carrier brackets.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower mounts on the Engine Support Bridge - Engine Support 28 :10-222A/28 and replace with the Engine Support Bridge - Engine Support 28-2 :10-222A/28-2 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- for securing the engine support bridge on the lock carrier from the Engine Support 28-2 :10-222A/28-2 .

Use the bolts in the Engine Support Bridge - Engine Support 28-2 :10-222A/28-2 for attaching the Engine Support Bridge - Engine Support 28 :10-222A/28 . Not the bolts for the bracket.

-- Install the Engine Support Bridge - Engine Support 28 :10-222A/28 and tighten the bolts to 8 Nm -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

A second technician is needed to mount the Engine Support Bridge on the vehicle to prevent the Engine Support Bridge from tipping.

-- If there are hose and cable connections located near the engine lifting eyes for the Engine Support Bridge :10-222A , these must now be removed.

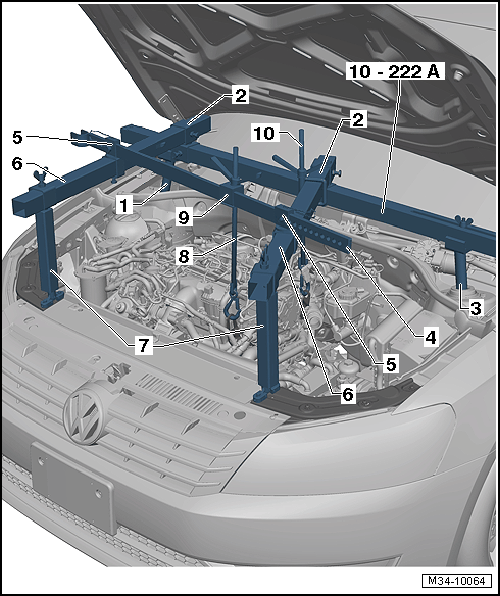

Vehicles with Diesel Engines

Install the Engine Support Bridge :10-222A as shown.

-- First slide the Moveable Joints -2- onto the Square Pipe from the Engine Support Bridge :10-222A .

The bolts for the Movable Joints :T40091/3 -2- on the Engine Support Bridge :10-222A face toward the front of the vehicle.

-- Mount the Engine Support Bridge :10-222A on the suspension strut towers and have a second technician hold it to prevent it from tipping.

-- Push the Engine Support - Basic Set- Square Pipe :T40091/1 -6- from the front left and right through the Engine Support Bridge - Engine Support 28:10-222A/28 -7- and place on each side of the Engine Support - Supplement Kit - Movable Joint :T40093/4 -5-.

-- Slide the Engine Support - Basic Set - Rail with Holes :T40091/2 - 4- with the Engine Support - Supplement Kit Mount :T40093/5 -9- in the Engine Support - Supplement Kit - Moveable Joint :T40093/4 -5-.

-- Install the locking pins into the Engine Support - Basic Set - Rail with Holes :T40091/2 -4- and secure it with the cotter pins.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Support Bridge - Engine Support 31 - Adapter 2 :10-222A/31-2
Engine Support - Basic Set - Moveable Joint :T40091/3
Engine Support Bridge - Engine Support 31 - Adapter 1 :10-222A/31-1
Rail with Holes :T40091/2
Movable Joint :T40093/4
Engine Support - Basic Set - Square Pipe :T40091/1
Engine Support Bridge - Engine Support 28 :10-222A/28 with Engine Support Bridge - Engine Support 28-2 :10-222A/28-2
Engine Support Bridge - Spindle :10-222A/11
Mount :T40093/5
Engine Support - Bracket w/Spindle and Hook :10-222A/10

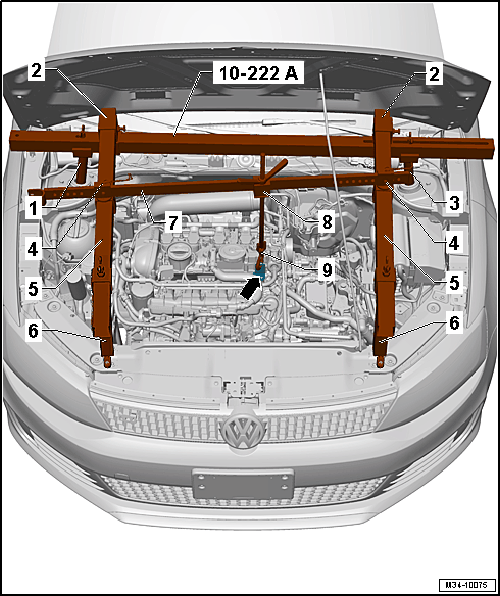

Vehicles with a Gasoline Engine

Install the Engine Support Bridge :10-222A as shown.

-- First slide the Moveable Joints -2- onto the Square Pipe from the Engine Support Bridge :10-222A .

The bolts for the Movable Joints:T40091/3 -2- on the Engine Support Bridge :10-222A face toward the front of the vehicle.

-- Mount the Engine Support Bridge :10-222A on the suspension strut towers and have a second technician hold it to prevent it from tipping.

-- Push the Engine Support - Basic Set - Square Pipe :T40091/1 -5- from the front left and right through the Engine Support Bridge - Engine Support 28 :10-222A/28 -6- and place on each side of the Engine Support - Supplement Kit - Movable Joint :T40093/4 -4-.

-- Push the Engine Support - Basic Set - Rail with Holes :T40091/2 -7- with the Engine Support - Supplement Kit - Mount :T40093/5 -8- in the Engine Support - Supplement Kit - Movable Joint :T40093/4 -4-.

-- Install the locking pins into the Engine Support - Basic Set - Rail with Holes :T40091/2 -7- and secure it with the cotter pins.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Support Bridge - Engine Support 31 - Adapter 2 :10-222A/31-2
Engine Support - Basic Set - Moveable Joint :T40091/3
Engine Support Bridge - Engine Support 31 - Adapter 1 :10-222A/31-1
Movable Joint :T40093/4
Engine Support - Basic Set - Square Pipe :T40091/1
Engine Support Bridge - Engine Support 28 :10-222A/28 with Engine Support Bridge - Engine Support 28-2 :10-222A/28-2
Rail with Holes :T40091/2
Mount :T40093/5
Engine Support Bridge - Spindle : 10-222A/11
- Engaged in the engine lifting eye -arrow-.

All Vehicles:

-- Tighten all the threaded connections on the Engine Support Bridge hand-tight. While doing so, adjust the height of the Engine Support Bridge parallel over the Engine Support Bridge - Engine Support 28 :10-222A/28 .

-- Pretension the engine/transmission sub-assembly using the spindles, but do not lift it.

The left drive axle must be removed later in the procedure.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With the vehicle still standing on its wheels, loosen the left front collar bolt -arrow- a maximum 90°, otherwise the wheel bearing will get damaged. Refer to Drive Axle .

-- Loosen the left front wheel bolts.

-- Lift the vehicle, all four take-up points of lifting platform at same height.

-- Remove the left front wheel.

-- Remove the noise insulation. Refer to Noise Insulation .

-- Remove the left front wheel housing liner. Refer to Wheel Housing Liner .

-- Transmission on vehicles with Start/Stop System: disconnect the connector -arrow- from the Transmission Neutral Position Sensor -G701-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket from the starter.

-- Remove the starter. Refer to Starter .

-- Remove the left charge air hose -arrow 1- and -arrow 2-. Refer to [For engine(s) CNLA] Charge Air Pressure ActuatorV465, Removing and Installing [For engine(s) CVCA] Charge Air System [For engine(s) CPPA, CPRA, CPKA, CPLA] Charge Air System [For engine(s) CZTA] Charge Air System .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the charge air pipe from the engine. Refer to [For engine(s) CNLA] Charge Air Pressure ActuatorV465, Removing and Installing [For engine(s) CVCA] Charge Air System [For engine(s) CPPA, CPRA, CPKA, CPLA] Charge Air System [For engine(s) CZTA] Charge Air System .

-- Remove the right charge air hose from the charge air cooler. Refer to [For engine(s) CNLA] Charge Air Pressure ActuatorV465, Removing and Installing [For engine(s) CVCA] Charge Air System [For engine(s) CPPA, CPRA, CPKA, CPLA] Charge Air System [For engine(s) CZTA] Charge Air System .

-- Remove the fan shroud with the coolant fan -arrow-. Refer to [For engine(s) CZTA] Radiator/Radiator Fan [For engine(s) CBPA] Radiator/Coolant Fan [For engine(s) CNLA] Radiator/Radiator Fan [For engine(s) CVCA] Radiator/Radiator Fan [For engine(s) CPPA, CPRA, CPKA, CPLA] Radiator/Radiator Fan .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with a Gasoline Engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front exhaust pipe from the turbocharger (-arrow-). Refer to [For engine(s) CPPA, CPRA, CPKA, CPLA] Exhaust System, Emission Controls [For engine(s) CBPA] Exhaust System, Emission Controls [For engine(s) CVCA] Exhaust System, Emission Controls [For engine(s) CNLA] Exhaust System, Emission Controls and tie it up.

Vehicles with Diesel Engines

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the exhaust system bracket from the subframe -arrows-. Refer to [For engine(s) CPPA, CPRA, CPKA, CPLA] Exhaust System, Emission Controls [For engine(s) CBPA] Exhaust System, Emission Controls [For engine(s) CVCA] Exhaust System, Emission Controls [For engine(s) CNLA] Exhaust System, Emission Controls .

-- Disconnect the exhaust system at the double clamp -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tie up the front exhaust pipe or set it on the tunnel brace.

All Vehicles:

-- Remove the pendulum support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Oil Level Thermal Sensor -G266-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove left coupling rod from stabilizer bar and set it to the side. Refer to Subframe .

-- Remove the drive axle heat shield -arrows- (if equipped). Refer to Drive Axle .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left drive axle. Refer to Drive Axle .

-- Remove the right drive axle from the flange shaft and tie them up as high as possible. Be careful not to damage the surface protection. Refer to Drive Axle .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hex collar bolts -arrows- on the left subframe mount -2- from the left bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the engine/transmission approximately 40 mm to dimension -a- using the spindles on the Engine Support Bridge :10-222A .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

When moving the engine/transmission assembly, pay attention to the connection lines, hoses and radiator.

-- Remove the bracket -1- from the transmission -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the relay lever together with the cable retainer. Refer to Removing .

-- Remove the gearshift lever from the gearshift shaft.

-- Remove the small flywheel cover plate -A- -arrows-, if equipped.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower engine/transmission connecting bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Loosen the engine/transmission connecting bolts -1- and -3- and let them be hand-tight.

Align the Transmission Support :3282 with the Transmission Support - Mounting Plate 33 :3282/33 in order to remove the "02Q" transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Transmission Support :3282 into the Engine and Gearbox Jack :VAS6931 .

-- Align the arms of the Transmission Support so that they match up with the holes in the Adjustment Plate.

-- Install the Support Elements -A- as illustrated on the Adjustment Plate.

-- Install the Mounting Element -C- instead of the Transmission Support - Pins 29 :3282/29 .

-- Position the Engine-Gearbox Jack :VAG1383A under the vehicle. The arrow symbol -B- on the Adjusting Plate points in direction of travel.

-- Align the Adjustment Plate so that it is parallel to the transmission.

-- Secure the Slide Hammer Set - Adapter 40 :VW771/40 inside the threaded hole in the transmission housing as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Transmission Support - Pins 29 :3282/29 into the rear hole for the pendulum support bolt on the transmission.

-- Secure the transmission on the Transmission Support :3282 with an M10 x 20 bolt -A-.

The needle bearing drift -B- must be flush with the guide on the Transmission Support :3282 -arrow-.

-- Remove the engine/transmission connecting bolt -C-.

-- Remove the last transmission to engine connecting bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the transmission from the engine (alignment sleeves).

-- Move the transmission in the area of the differential with the spindles of the Transmission Support :3282 into an angled position.

The differential, near the transmission, must face upward.

The right flange shaft -1- must be guided over the bolting eyelet of the engine -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully push the engine forward slightly with a second technician.

-- Guide the transmission and the differential over the subframe -A- and swing it out.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pay attention to the longitudinal member -arrows-. Then carefully lower the transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Pay attention to the lines when lowering the transmission.
