Gearshift Knob, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the boot with the center console cover from the center console or pry it out carefully -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

It may be necessary to pry off the front of the boot on some models.

-- Fold the boot with the center console cover up over the shifter knob.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamp -arrow- and remove the shift knob and boot.

In some equipment versions, the center console cover remains in the center console.

-- Pull the center console cover out or pry it out carefully.

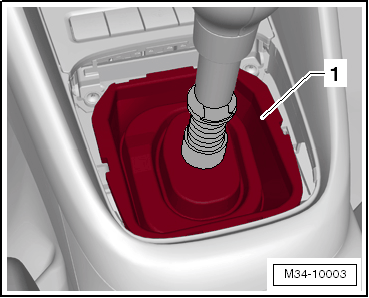

-- Remove the noise insulation -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
