Gearshift Cable And Selector Cable, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal. Note the following:

-- Secure the shift cable and selector cable on the shift housing with lock washers -2- and -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the shift cable -1- on the gearshift lever and selector cable -4- on the selector lever inside the shift housing.

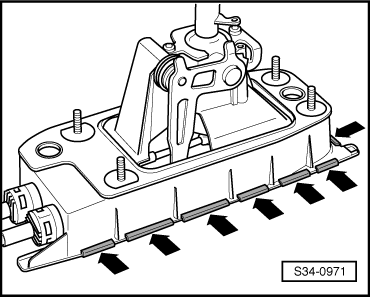

-- Install the base plate with new seal on the shift housing -arrows-. Refer to Assembling .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the gearshift mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .

-- Adjust the gearshift mechanism. Refer to SELECTOR MECHANISM, ADJUSTING .
