Piston Projection, Measuring At TDC: Procedure
WARNING: This page is about a different variant/trim than selected.
-- Secure the :VAS6079 with the :VW382/7 and :VW385/17 to the cylinder block, as shown.
-- Measure the projecting end on each piston at both spots identified with -arrows- (longitudinally on the engine: at the front and back of the piston).
-- Depending on the piston projection, install the corresponding cylinder head gasket according to the following table:
| Piston Projection Above The Upper Edge Of The Cylinder Block mm | Identification Holes |
|---|---|
| 0.91 to 1.00 | 1 |
| 1.01 to 1.10 | 2 |
| 1.11 to 1.20 | 3 |

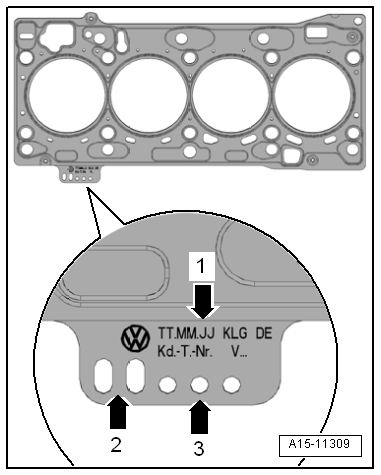

Cylinder Head Gasket Identification
- Part Number
- Ignore
- Holes
NOTE:
If different values were measured for the piston projection, then use the highest value for the cylinder head gasket allocation.
