Notes for disassembling the transmission

The transmission replacement parts are allocated according to the transmission code.

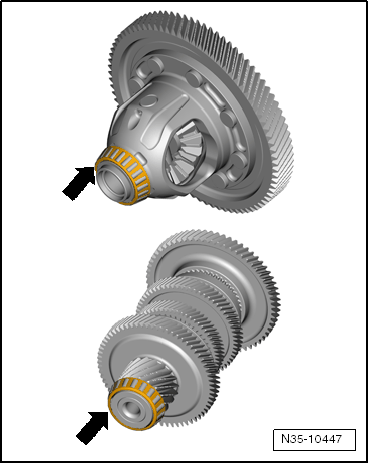

For each assembly on the shafts pay attention to the >>lower<< bearing. The bearing cage can be very easily bent or damaged by >>rubbing<<.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bearing shells may not be interchanged. The are paired with the bearing.

Always replace the bearing from a shaft together.

Example:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

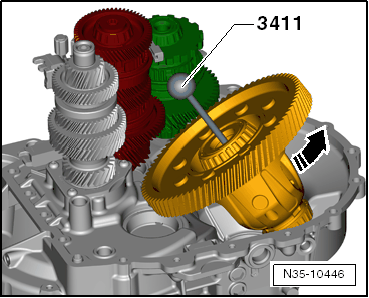

Always install the differential using a Lock Carrier Support Tool :3411  . Pay attention not to rub against the lower bearing.
