Overview -

WARNING: This page is about a different variant/trim than selected.

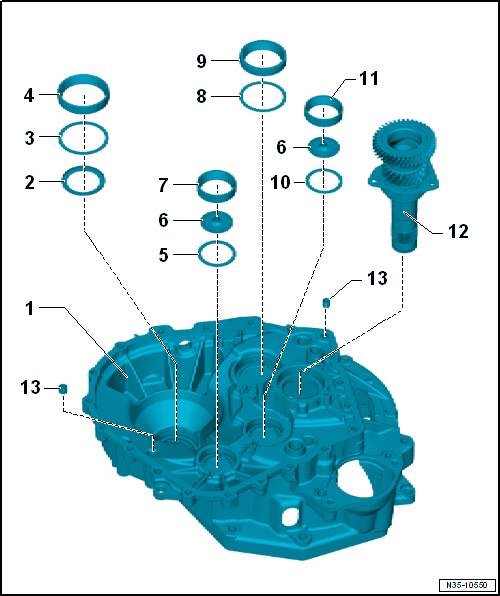

Fig 1: Exploded View Of Clutch Housing
GWWN35-10550Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Clutch Housing
  2. Diaphragm Plate
    • The flat side faces outward.
  3. Bearing Race
  4. Differential Bearing Shell
  5. Output Shaft 3 Shim
  6. Guide Plate
    • Always replace a deformed plate
  7. Output Shaft 3 Bearing Shell
    • Removing. Refer to Figure.
    • Preparing for pressing in. Refer to Figure.
    • Pressing in output shaft 3. Refer to Figure.
  8. Output Shaft 1 Shim
  9. Output Shaft 1 Bearing Shell
    • Removing. Refer to Figure.
    • Preparing for pressing in. Refer to Figure.
    • Installing. Refer to Figure.
  10. Output Shaft 2 Shim
  11. Output Shaft 2 Bearing Shell
    • Removing. Refer to Figure.
    • Preparing for pressing in. Refer to Figure.
    • Pressing in output shaft 2. Refer to Figure.
  12. Exterior Driveshaft
  13. Centering Bushing
    • Quantity: 2
