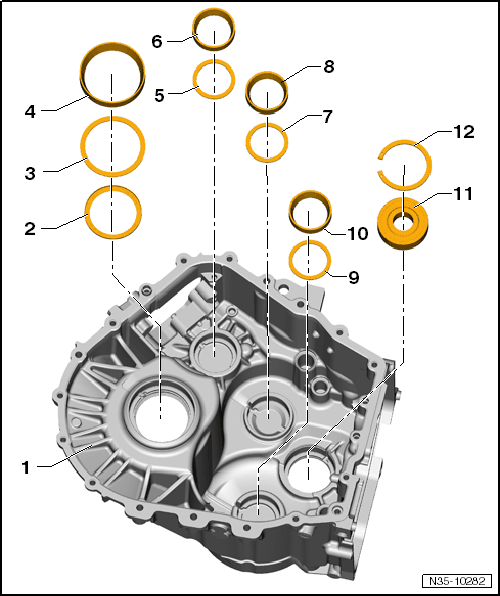

Overview - Transmission Housing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission Housing
- With oil guide. Refer to Figure.
Diaphragm Plate
- The flat side faces outward.
Differential Shim
- Determine thickness. Refer to TRANSMISSION HOUSING SHIMS, DETERMINING .
Differential Bearing Shell
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Output Shaft 3 Shim
- Determine thickness. Refer to TRANSMISSION HOUSING SHIMS, DETERMINING .
Output Shaft 3 Bearing Shell
- Removing. Refer to Figure.
- Preparing for pressing in. Refer to Figure.
- Installing. Refer to Figure.
Output Shaft 2 Shim
- Determine thickness. Refer to TRANSMISSION HOUSING SHIMS, DETERMINING .
Output Shaft 2 Bearing Shell
- Removing. Refer to Figure.
- Preparing for pressing in. Refer to Figure.
- Installing. Refer to Figure.
Output Shaft 1 Shim
- Determine thickness. Refer to TRANSMISSION HOUSING SHIMS, DETERMINING .
Output Shaft 1 Bearing Shell
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Bearing for Inner Driveshaft
- Remove to press off the circlip
- Press in the >>new<< bearing. Refer to Figure.
Circlip
- Replace after removing
