Filling the Hydraulic Fluid:

WARNING: This page is about a different variant/trim than selected.

NOTE:

First fill new oil after all repairs are completed on the Mechatronic.

-- After the fluid is completely drained out, turn the Mechatronic again. The fluid filler hole points upward.

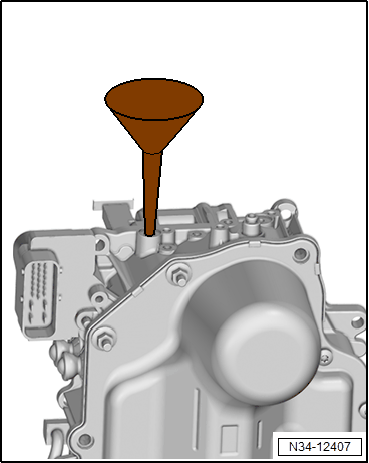

-- Insert a commercially available clean funnel in the fluid filler hole.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Shake the fluid bottles before opening them.

-- Fill one liter hydraulic fluid.

-- Install the new oil filler plug.

CAUTION:

Risk of causing damage to the Mechatronic.

Fluid that has leaked out can only be adjusted correctly when changing the hydraulic fluid. It is not possible to check the fluid level.
Under filling or overfilling will impair the function of the Mechatronic.

-- Seal the Mechatronic vent with clean plugs from the Engine Bung Set:VAS6122 oil tight. When installing it prevents oil from dripping out of the hole unintentionally.

-- Install the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .
