Draining Hydraulic Fluid
WARNING: This page is about a different variant/trim than selected.

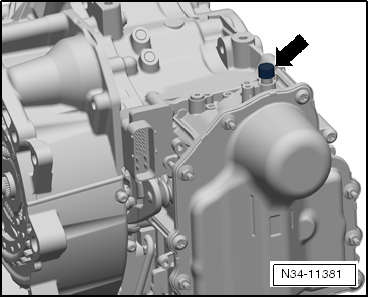

-- Remove the oil filler plug -arrow-.
Replace the bolt after removing.
-- Remove the cap from the bleeder -arrow- if not removed.
WARNING:
On some transmissions, the breather cap on the Mechatronic is destroyed during removal and must be replaced.
NOTE:
The fluid flows when turning the Mechatronic out of the oil filler hole and the bleed hole. Pay attention that both openings are held in the pan of the Used Oil Collection and Extraction Unit :SMN372500 .
-- Turn the Mechatronic and let the fluid drain out completely.
