Boot With Clutch Positioner, Replacing: Installing

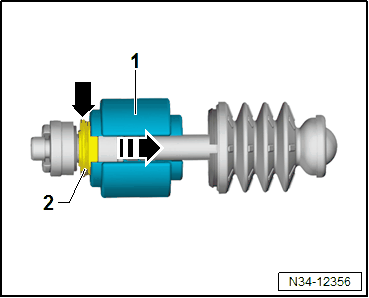

-- Coat the sealing lip -arrow- of the seal -2- lightly with oil and push in the guide bushing -1- all the way.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

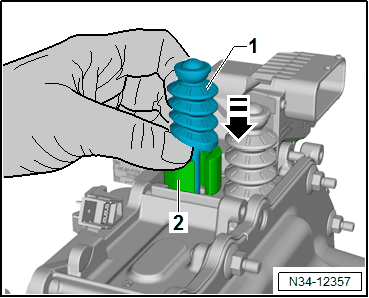

-- Place the clutch positioner -1- with the guide bushing -2- carefully on the Mechatronic opening. Hold the guide bushing with a hand and push the clutch positioner with the other hand approximately 30 mm in the Mechatronic.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the guide bushing carefully. At the same time the piston must not be removed further.

-- Push the clutch positioner carefully back into the Mechatronic until the boot contacts the opening.

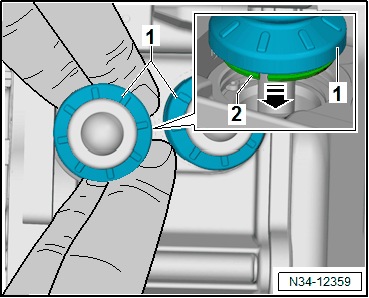

-- Engage the boot -1- with the catch -2- with four fingers in the Mechatronic.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the other clutch positioner in the same way.

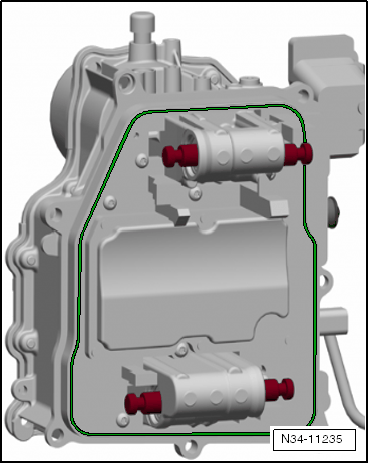

-- Remove the old seal from the Mechatronic and clean the seal groove -shown in green- before installing a new seal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

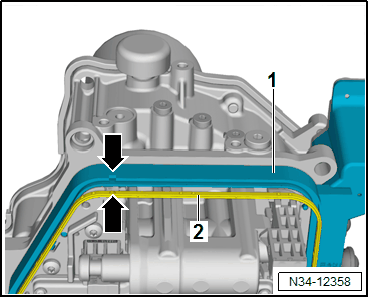

-- Install the new seal in the Mechatronic groove all around. The recess on the seal -lower arrow- must align with the recess on the Mechatronic -upper arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refill the oil if it was drained from the Mechatronic. Refer to MECHATRONIC HYDRAULIC FLUID, DRAINING AND FILLING .

-- Install the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .
