-- Position the Mechatronic so that the oil filler plug -arrow- points upward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

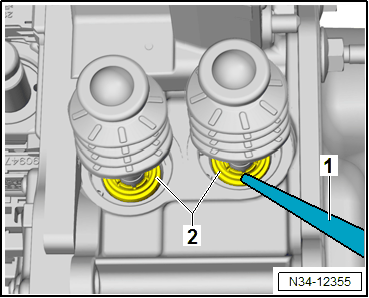

-- Clean the area around the seals -2- with a cleaning solution or use the flushing bottle -1- with soap. Then let the soap drip and if necessary use a lint-free cloth to dry.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Mechatronic on its side so that the clutch positioner points upward. Pay attention that the bleeder -arrow- is sealed tightly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

For all procedures the highest level of care and cleanliness is extremely important. At the same time pay attention when removing the clutch positioner that no dirt enters the opening.

-- Remove both clutch positioners from the Mechatronic.
