Parking Lock, Removing And Installing: Removing

• The transmission is installed.

-- Remove the cover from the parking lock -1-. Refer to PARKING LOCK COVER, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

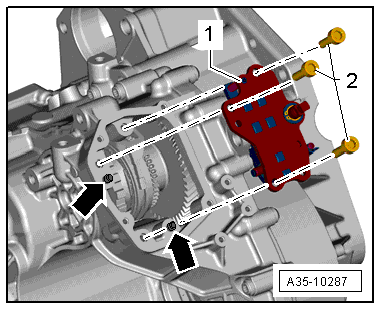

-- Remove the bolts -2- and pull the parking lock -1- off the alignment sleeves -arrows-.

It the parking lock cannot be removed by hand:

-- Mount Slide Hammer Set :VW771  with Slide Hammer Set - Hook :VW771/37  behind the parking lock and remove it by pulling alternating from side to side.

-- Replace the bolts -2- after removing them.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
