Transmission Housing Shims, Determining: Notes

Special Tools And Workshop Equipment Required

• Measuring Tool :T10425

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Ruler (2 pc.) :T40100

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Not illustrated: Digital Depth Gauge - 300mm :VAS 6594

Brief Description:

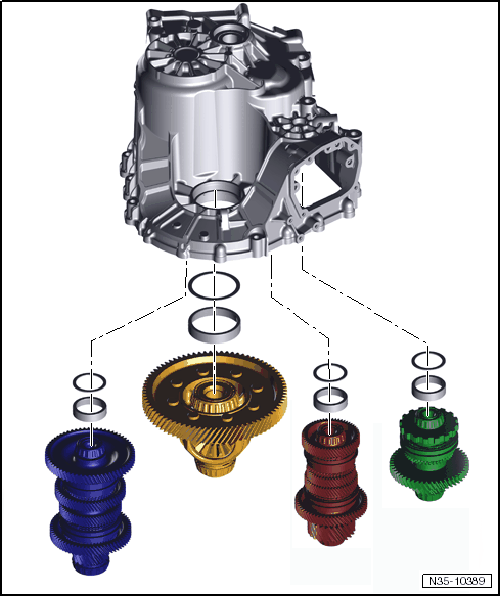

In this >>step<< it is determined, how thick the shim in the transmission housing must be. There are four shims installed in total. On each output shaft one shim. The differential here also has one shim.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The shims in the transmission housing can only be determined when the shims in the clutch housing are correctly determined or do not have to be measured.
• Only determine the shims in the transmission housing when the shims in the clutch housing are OK.
