Output Shaft 3, Disassembling: Notes

WARNING: This page is about a different variant/trim than selected.

Special Tools And Workshop Equipment Required

Press Plate :VW402

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Plate :VW401
Press Piece - 37mm :VW416B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Bushing :VW434

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use :VW447H

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Removal Device - Component 2 :VW460/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-3- Puller :VAS 251 413 (Kukko 17/3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-3- Splitter :VAS 251 405 (Kukko 15/3)

NOTE:

So that the shaft does not fall downward when pressing in place suitable material under the press. It is also possible to hold the shaft by hand.

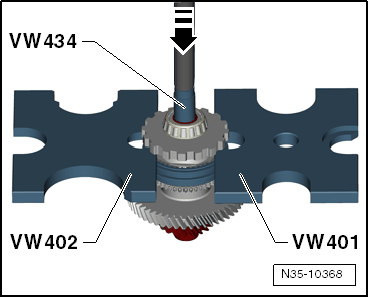

-- Remove the parking lock gear together with the bearing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

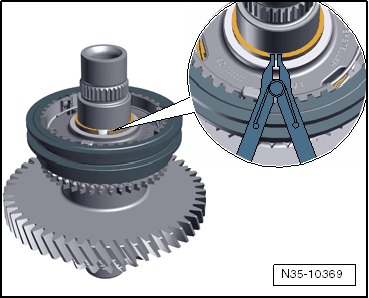

-- Remove the locking ring.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

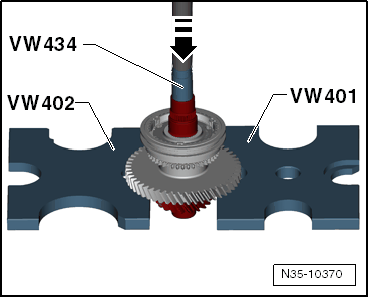

-- Remove the shaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Only perform the following step when the bearing is replaced.
