Output Shaft 3, Assembling
Special Tools And Workshop Equipment Required
- Press Plate :VW402
- Press Piece - 37mm :VW416B
- Press Piece - Multiple Use :VW 447 H
- Press Piece - Multiple Use :VW454
This procedure shows how the output shaft 3 is assembled. For the following procedures on the press the shaft bearing may not be damaged.
If the bearing is not replaced it must be protected.

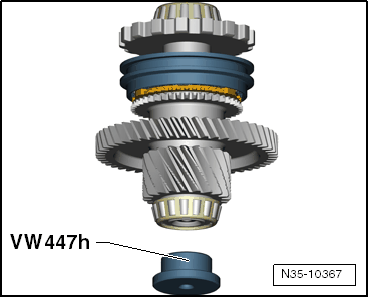

- When installing the bearing for each pressing procedure the Press Piece - Multiple Use :VW 447H
must also be used.
- Removing the bearing. Refer to Removing the Output Shaft 3 Bearing .
- Installing the bearing. Refer to Installing the Output Shaft 3 Bearing .

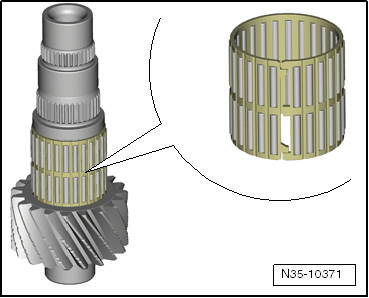

-- Install the needle bearing.
-- Coat the bearing lightly with oil.

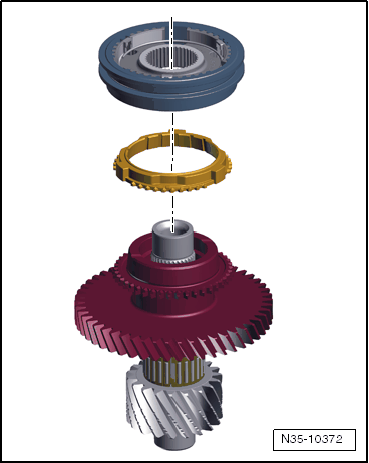

-- Position the reverse gear, gear wheel, synchronizer ring and locking collar.
-- Coat the friction surface with oil.
The synchronizer hub can only be positioned. It is installed in the next step.

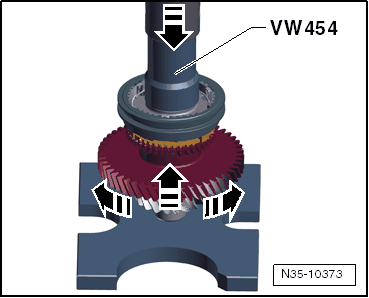

-- Press on the synchronizer hub and locking collar.
While pressing on, pay attention to two things:
Lift the gear and at the same time do not turn. The synchronizer ring is in its installation position, before the synchronizer hub clamps the ring.
After the ring has found its seat press on only until more force is felt. Then immediately stop pressing.
After pressing turn the gear wheel in the horizontal position of the shaft >>free<<.

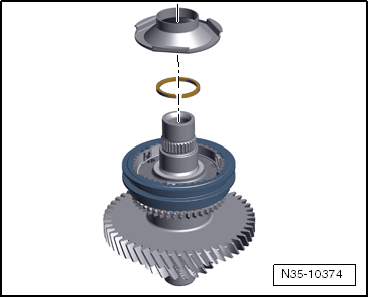

-- Insert the circlip.
-- Insert the -stop ring-.
-- Position the parking lock gear and bearing.

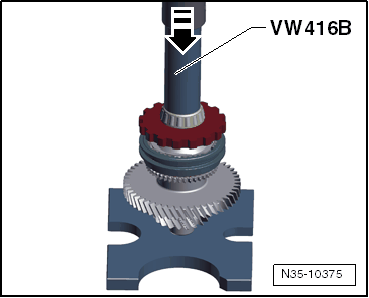

-- Press on both together.
