Output Shaft 1, Completely Disassembling: Notes

Special Tools And Workshop Equipment Required

• Socket - Xzn 14 :T10061

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Plate :VW402

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Multiple Use :VW454

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Removal Device - Component 2 :VW460/2

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -3- Puller :VAS 251 413  (Kukko 17/3)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -3- Splitter :VAS 251 405  (Kukko 15/3)

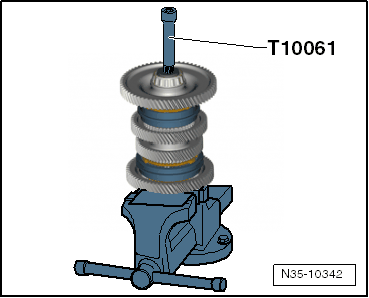

-- Insert the protective jaws in the vise and tighten down on the output shaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolt using Socket - Xzn 14 :T10061  and remove.

After disassembly, always replace the bolt.

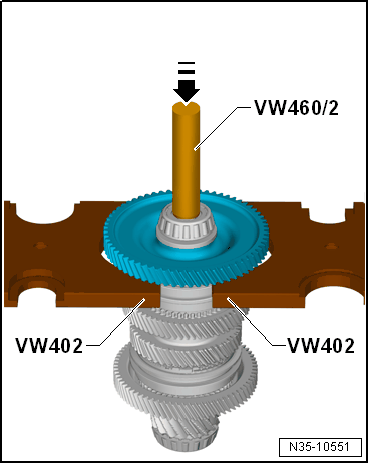

-- Remove the 1st gear wheel from the output shaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the needle bearing.

The needle bearing sleeve is removed in the next step.

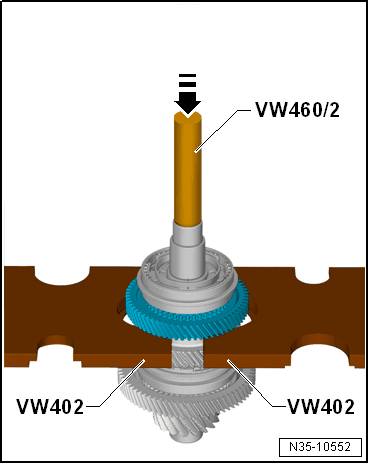

-- Remove the 3rd gear wheel with locking collar and synchronizer hub from the output shaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

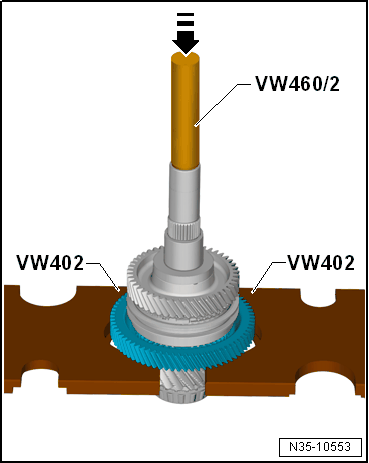

-- Completely press out the output shaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
