Inner Driveshaft, Disassembling And Assembling

Special Tools And Workshop Equipment Required

• Press Plate :VW401

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Plate :VW402
• Press Piece - 60mm :VW415A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Support Channels :VW457

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Front Control Arm :2040

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Overview - Inner Driveshaft

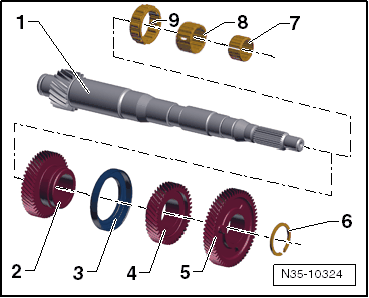

Fig 1: Exploded View Of Inner Driveshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Inner Driveshaft
2. 5th Gear Wheel: does not need to be pressed off to clean. Pressing off (refer to Removing The 5TH Gear ), pressing on (refer to Installing The 5TH Gear ).
3. Sensor wheels: does not need to be removed to be cleaned. Pry out using the lever: press on (refer to Sensor Ring ) always replace the removed sensor ring.
4. 3rd Gear Wheel: Pressing off (refer to Removing The 3RD Gear ), pressing on (refer to Installing The 3RD Gear ).
5. 7th Gear Wheel: Pressing off (refer to Removing The 7TH Gear ), pressing on (refer to Installing The 7TH Gear ).
6. Circlip
7. Needle Cage
8. Needle Cage; >>Large<< Needle
9. Roller Cage
