Transmission Mount, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Battery tray. Refer to BATTERY .

-- Remove the Engine Control Module -J623- from the bracket. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

-- Unclip the wiring guide -1- upward in direction of -arrows- and move it slightly to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

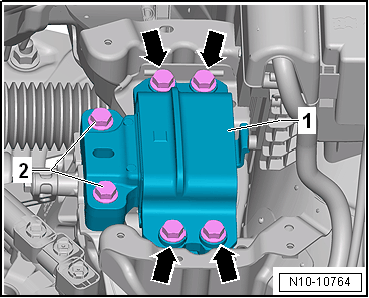

-- Remove the bolts -2-, then the bolts -arrows- and remove the transmission mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
