SUBFRAME Mount, Checking Adjustment

WARNING: This page is about a different variant/trim than selected.

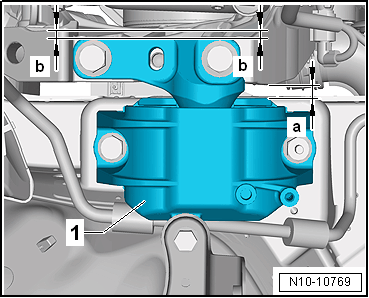

There must be a distance -a- of 10 to 13 mm between the engine support and right longitudinal member.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
The casting edge on the engine support must be parallel to the engine mount support arm.
Dimension -b- = Dimension -b-.

NOTE:

Distance -a- can also be checked using a suitable round stock.

Only If There Is Noise (the Engine or Transmission Hitting the Longitudinal Member When Driving around Curves) and Dimension -a- is Not within 10 to 13 mm:

-- Adjust the subframe mount. Refer to SUBFRAME MOUNT, ADJUSTING .
