Tightening Specifications

WARNING: This page is about a different variant/trim than selected.

Fig 1: Engine Support Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in steps in the sequence -1 to 3- :

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 through 3-	7 Nm
2.	-1 through 3-	40 Nm
3.	-1 through 3-	Turn an additional 90°.

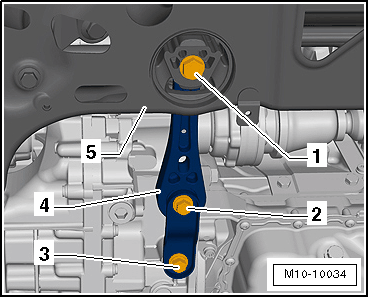

Fig 2: Pendulum Support Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First fasten the pendulum support -4- to the transmission and then to the subframe.

-- Tighten the bolts in steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-2 and 3-	50 Nm
2.	-1-	100 Nm
3.	-1 through 3-	Turn an additional 90°.
