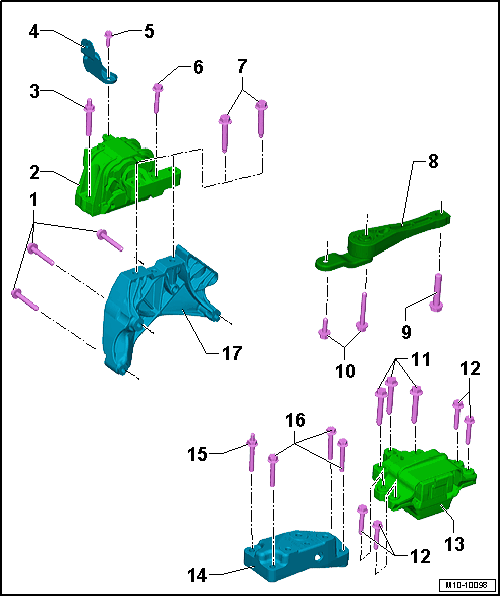

Overview - SUBFRAME Mount: Notes
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Tightening specification. Refer to Figure.
- Replace after removing
- Engine support to engine
- Engine Mount
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm +90°
- Replace after removing
- Engine mount to body
- Bracket
- Bolt
- 20 Nm +90°
- Replace after removing
- Bracket to engine mount and body
- Bolt
- 40 Nm +90°
- Replace after removing
- Engine mount to body
- Bolts
- 60 Nm +90°
- Replace after removing
- Engine mount to engine support
- Pendulum Support
- Removing and installing. Refer to Figure
- First install pendulum support to the transmission and then to the subframe
- Bolt
- Tightening specification. Refer to Figure.
- Replace after removing
- Pendulum support to subframe
- Bolts
- Tightening specification. Refer to Figure.
- Replace after removing
- Pendulum support to transmission
- Bolt
- 60 Nm +90°
- Replace after removing
- Transmission mount to transmission support
- Bolt
- 40 Nm +90°
- Replace after removing
- Transmission mount to body
- Transmission Mount
- The illustration shows the DSG® transmission version
- Transmission Support
- Bolt
Tightening Specification:
- Vehicles with a manual transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (02Q) and TRANSMISSION, REMOVING AND INSTALLING (0AF) .
- Vehicles with a DSG® transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (0CG) and TRANSMISSION, REMOVING AND INSTALLING (02E) .
- Double Bolt
- Transmission support to transmission
- Bolt
Tightening Specification:
- Vehicles with a manual transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (02Q) and TRANSMISSION, REMOVING AND INSTALLING (0AF) .
- Vehicles with a DSG® transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (0CG) and TRANSMISSION, REMOVING AND INSTALLING (02E) .
- Transmission support to transmission
- Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
